AMET XM

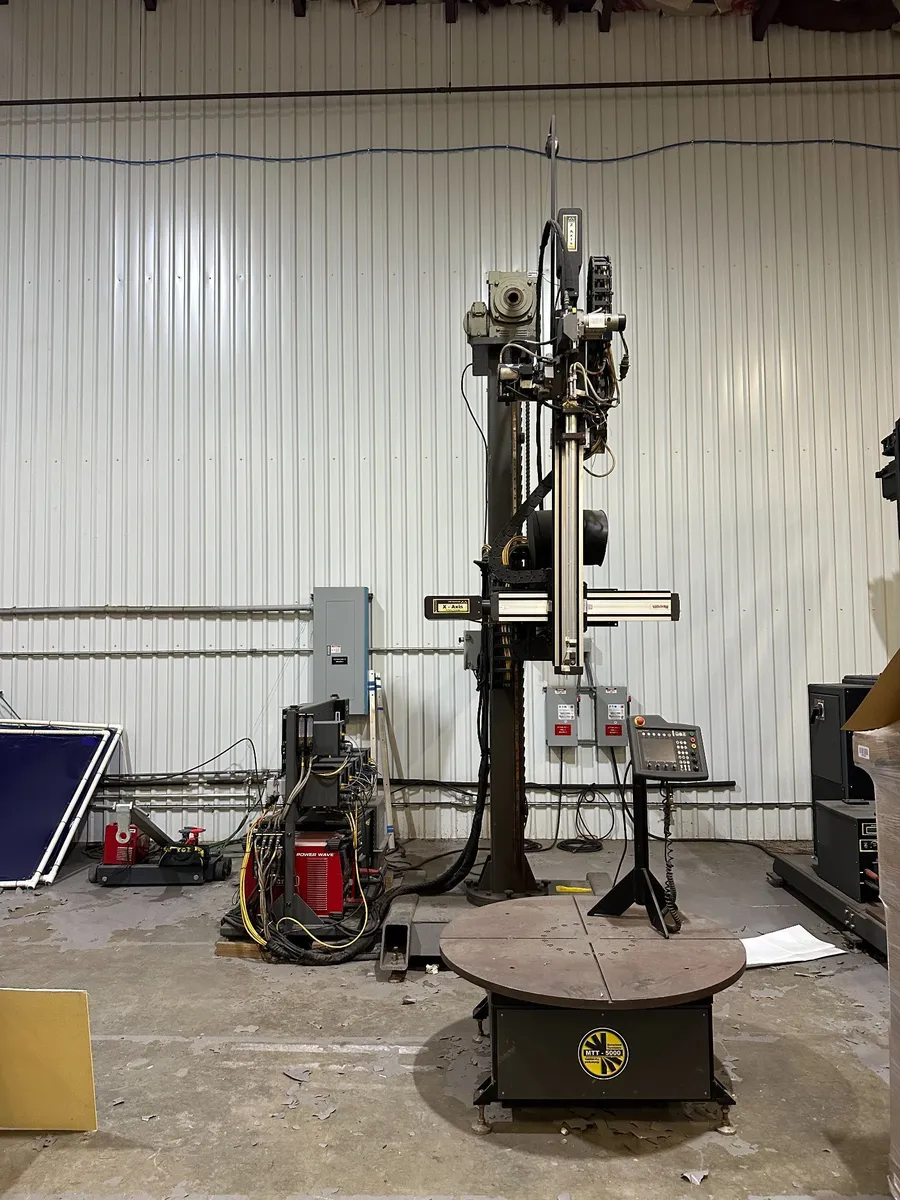

The AMET bore cladder is a compact yet versatile and complete bore cladding system. The TIG cladding systems include the following capabilities:

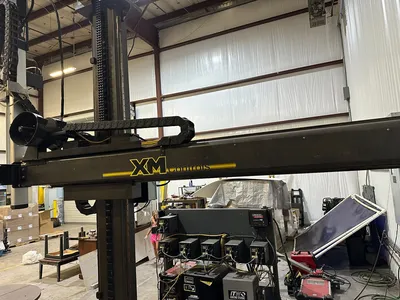

Horizontal Motion: 78.7 in (2000 mm) of precision motorized boom motion

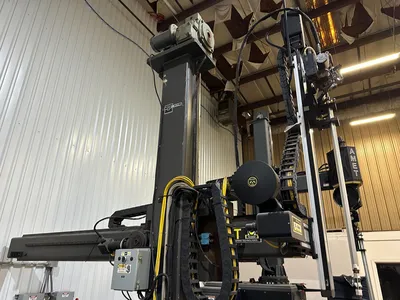

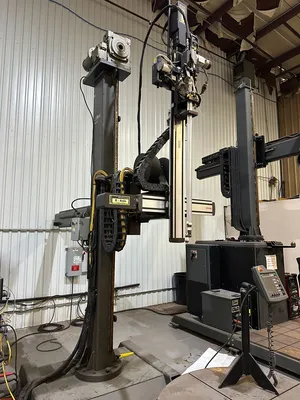

Vertical Motion: 78.7 in (2000 mm) of precision motorized column (mast) motion
Column Rotation: 360 degrees of manual rotation with manual brakes to maintain position.

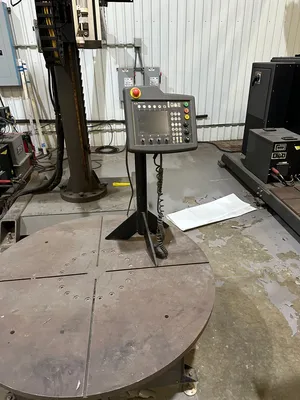

Turntable Weight: The turntable is capable of rotating parts up to 2,200 lb (1000 kg)
Part Diameter: The turntable faceplate is capable of holding parts with an outer diameter (OD) up to 36 in (914 mm)
Wire Feed Speed: Capable of programmable wire feed from 1 to 500 in/min (25 to 12700 mm/min)

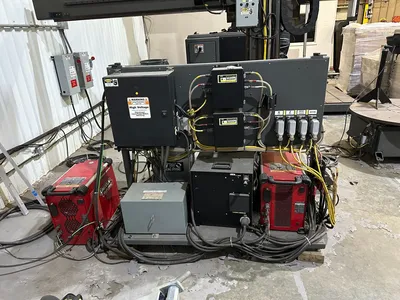

Hotwire Power Supply: 200 Amps up to 20 Volts
Welding Power Supply: Output range of 5-350 Amps
Water Circulator: Capable of cooling torches up to 500 Amps
Water-cooled Bore Torch:
Minimum Bore Diameter: 2.13 in (54 mm)
Max Weld Current: 200 Amps at 100% duty-cycle
Max Hotwire Current: 70 Amps
Reach: 32 in (813 mm)
Additional features are available to increase the capabilities of this cladding system. Please see the Optional Features section for more information.
