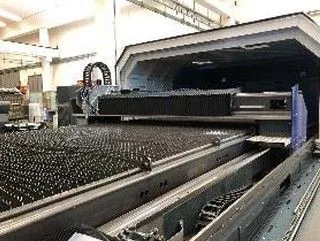

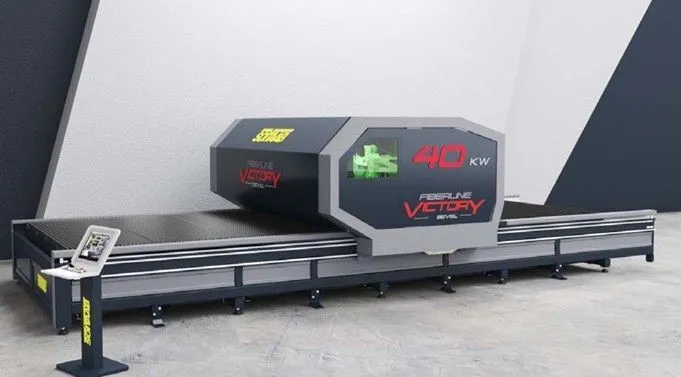

SOITAAB LASERTECH FiberLine VICTORY 1570

No. 1 LASERTECH FIBERLINE “VICTORY” laser cutting machine. Useful cutting area 1,5 x 7 m. Equipped with:
No. 1 CARRIAGE FOR LASER HEAD for VERTICAL CUTTING;
No. 1 LASER CUTTING HEAD, MODEL PRECITEC PROCUTTER 2.0;
No. 1 AUTOMATIC NOZZLE CLEANING DEVICE;
No. 1 LASER GENERATOR with chiller, MODEL Raycus 12 kW;
No. 1 NUMERICAL CONTROL SOITAAB CNC Touch Screen;
No. 1 AUTOMATIC WORKING PLATE ACQUISITION (APA);
No. 1 GAS DISTRIBUTION SYSTEM AND ELECTRIC CABINET;
No. 1 SOFTWARE CAD CAM LANTEK EXPERT CUT PLUS;
No. 1 MOBILE PROTECTION CABIN with its own motorization, coordinated with the movement of the portal;
No. 1 CUTTING TABLE;
No. 1 FUME FILTRATION UNIT. Not suitable for aluminum cutting.
No. 1 CNC CONTROL SYSTEM  Model 660
Touch Screen
• 21.5-inch video • Graphical display
• Direct connection to the two cameras located inside the cabin – included in the scope of supply
• Graphics card
• Automatic restart in case of collision
• Kerf handling if needed
• Handling of the fume filtration system: start and stop of the filter and automatic opening/closing of the exhaust shutters
• Control of the cycle duration and analysis between the estimated cycle time and the actual time achieved
• Dynamic control of the cutting parameters
• PC dedicated to laser functions
• Ethernet card for remote control and diagnostics
• Ethernet card for remote control and diagnostics
N.01 License includes: - Geometric construction of the 2D figure
- Automatic dimensioning of the drawing
- I/O module in DXF/DWG format
- Transmission and reception to CNC
- Library of 50 2D parametric figures
- Manual and automatic cutting technology
- Continuous automatic cutting
- Automatic jumpers
- Minimum heating management
- Interactive and automatic nesting
- Window nesting
- Manual nesting with automatic collision control
- Automatic nesting in sheet metal cutouts
- Common cutting automatically
- Interactive processing modification
- Pre-cutting cycles
- Technological tables and work rules for material and thickness
- Calculation of times and preventive costs
- Work order management
- Sheet metal warehouse and cutouts
- MSDE-SQL service manager database

Working Area (L x W): 1500 x 7000 mm (5x23 ft).
Transversal axis travel: 1.530 mm (5ft).
Longitudinal axis travel: 7.030 mm (23ft).
Z axis travel: 120 mm (4.7 in).
Position accuracy and repeatability: ±0.05 mm and ±0.04 mm. X/Y axis travel speed: up to 373 ft /min(113 m/min). X/Y axis acceleration: 1 G. CNC control screen: ESA S660w, 21,5”. Transmission: Laser power rack and pinion, 12 kW. Chiller for laser machine. Filters: 32 kW, 18 kW, 15 kW. Cutting capacity with overall power installation (25 gauge- 0.86 in): 0.5 mm to 22 mm, under 180 kW. Power specifications: 3-phase voltage, 400 V, 50 Hz, IP54 protection level. Material suitability: Compatible with fiber laser cutting technology for mild steel, stainless steel (S 235 J2C+N, AISI 304), and aluminum (if equipped with suitable fume filtration for aluminum cutting).
