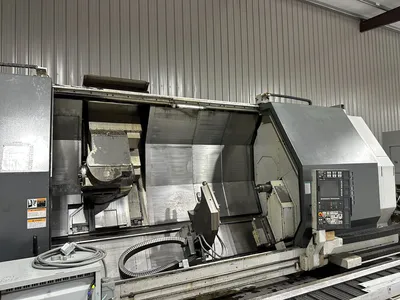

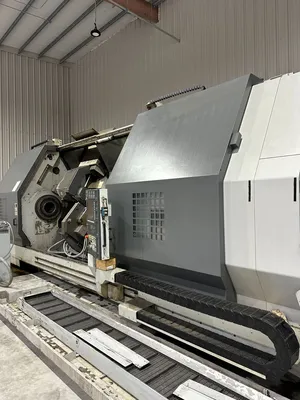

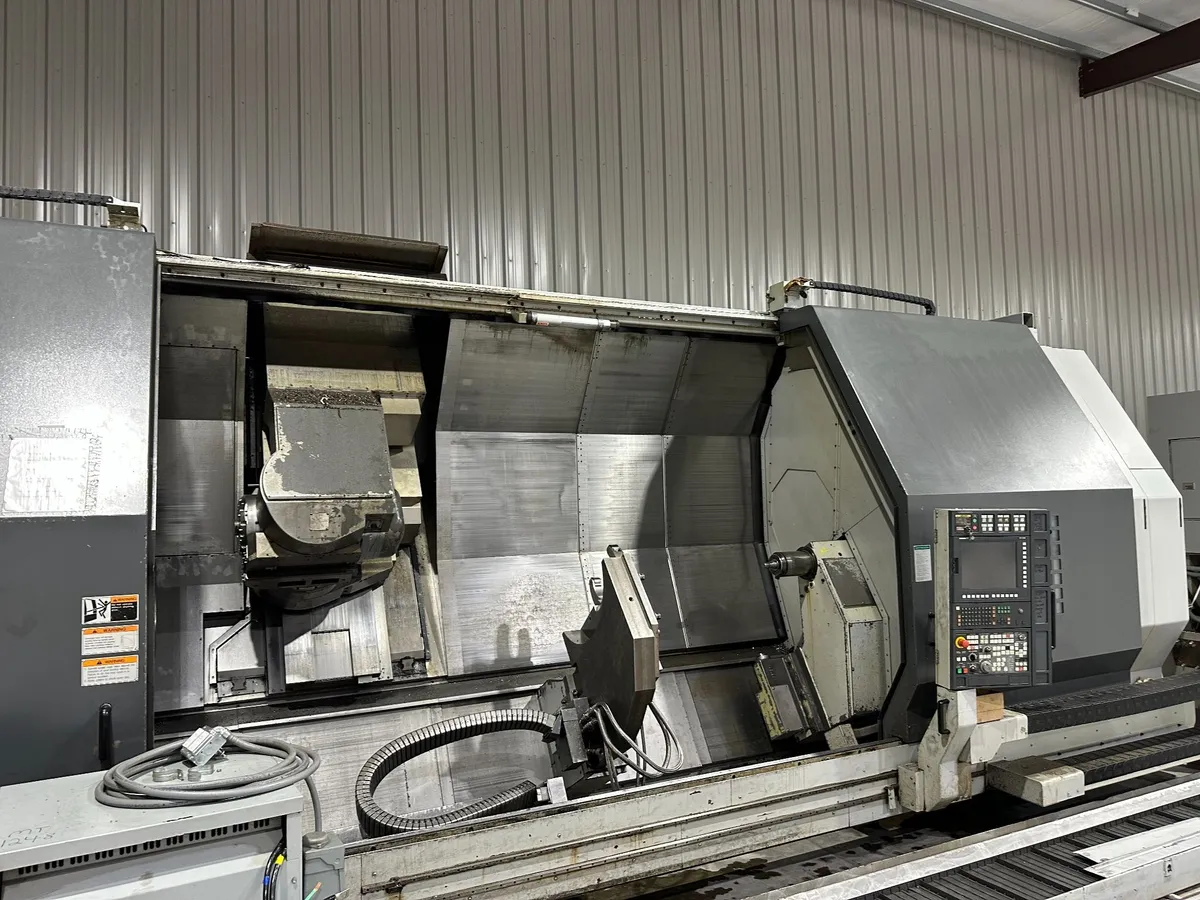

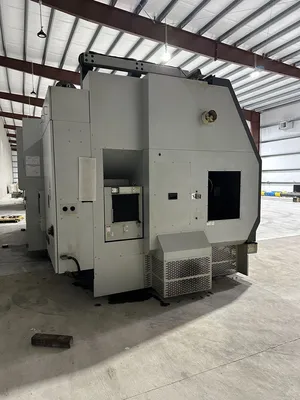

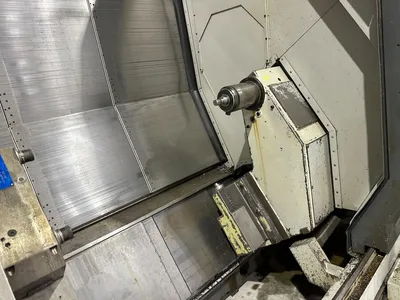

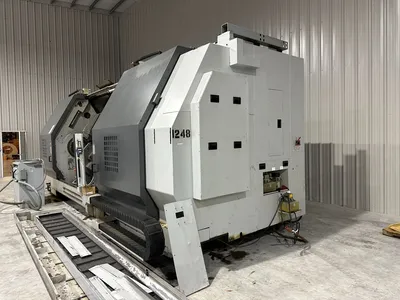

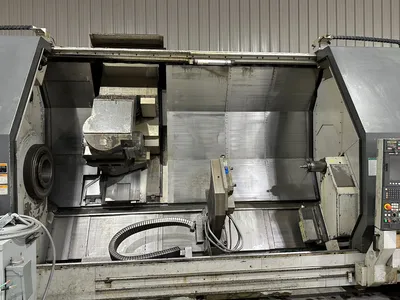

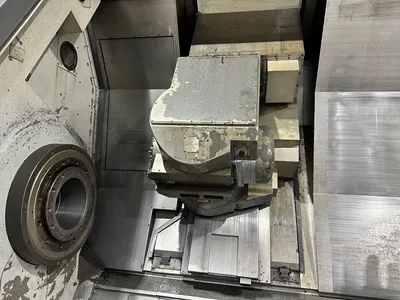

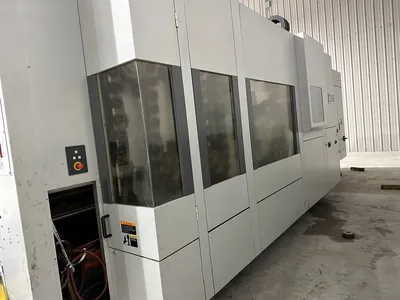

2007 MORI SEKI MT 4000C/3000
Have one to sell?
ConditionUsed
1 available
MORI SEIKI MT 4000C/3000, 2007 model, used condition, 5-axis CNC lathe available now. Ideal for precision machining needs, this high-performance equipment is a reliable solution for enhancing production capabilities.
General Overview
The MT4000C/3000 is a versatile B-axis MillTurn CNC machine combining turning and milling functions, suitable for complex machining operations and large workpieces. It includes a fully rebuilt milling spindle (2023) and robust construction for stability during high-precision tasks
Work Envelope
Maximum Cutting Diameter: 37 inches (939.8 mm)
Maximum Cutting Length: 120 inches (3,048 mm)
X-Axis Travel: 39.6 inches (1,005.8 mm)
Y-Axis Travel: 11.81 inches (+/- 5.9 inches)
Z-Axis Travel: 124 inches (3,149.6 mm)
Chuck Size: 24 inches (609.6 mm)

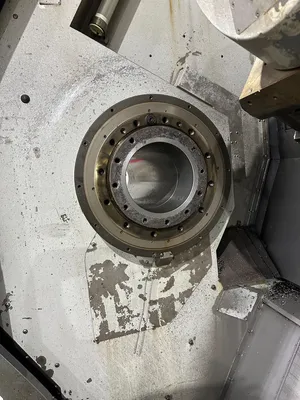

Spindle Bore: 10.8 inches (274.32 mm)

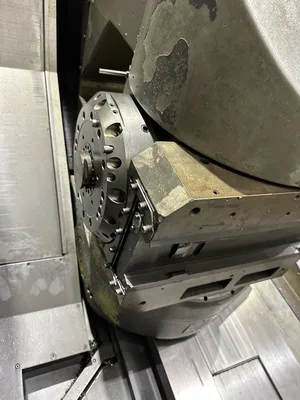

B-Axis Travel: -120 degrees to +105 degrees
Tool Positions (B-axis): 120 positions
Spindle and Motor Details
Turning Spindle Motor: 50 HP
Spindle Speed (Turning Spindle): 1,000 RPM
B-Axis Milling Spindle Motor: 20 hp
B-Axis Milling Speed: 6,000 RPM
Spindle Taper: CAPTO C8 for B-axis milling
Spindle Nose (Turning): A1-20
Rapid Traverses and Feeds
X-Axis Rapid Traverse: 944 in/min (24 m/min)
Y-Axis Rapid Traverse: 944 in/min (24 m/min)
Z-Axis Rapid Traverse: 787 in/min (20 m/min)
Milling/Turning Capabilities: Incorporates a Y-axis for milling and complex contours with B-axis rotatable spindle
Additional Features

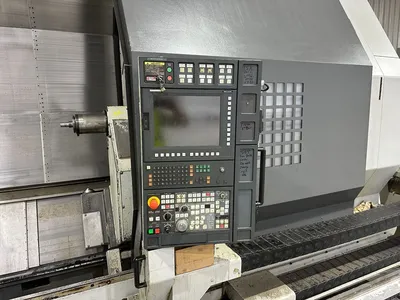

Control System: MORI SEIKI MSX-502III

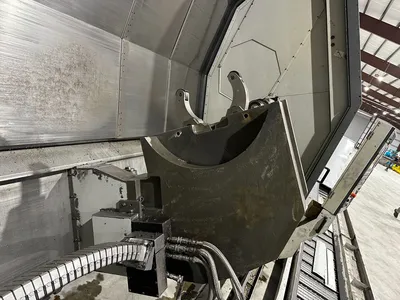

Steady Rest: Hydraulic ROHM SLZ-325, supporting diameters 1.5" – 9.4"
Tailstock: Programmable
Coolant: CoolJet high-pressure unit, up to 1,000 PSI

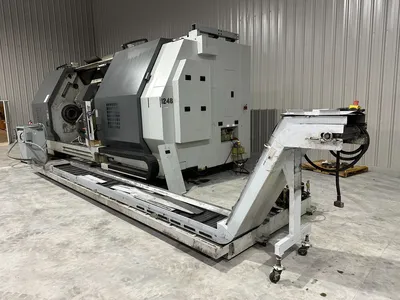

Chip Handling: Royal Mist Collector (FX1200) with chip conveyor
Boring Capability: Long boring bar attachment (requires realignment)
Material Capability: Primarily used for cutting 4140 steel
Weight: ~95,000 lbs
