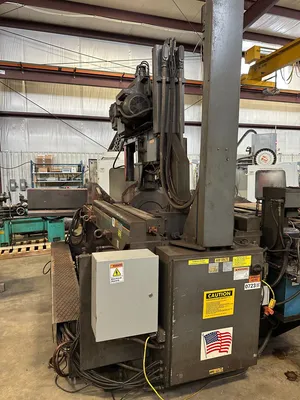

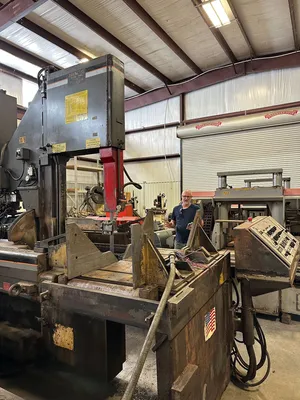

HEM V150A

The HEM V150A is a robust automatic mitering vertical band saw capable of precise metal cutting, with a cutting capacity of up to 20" wide by 25" high at 90° and 20" by 18" at 45°, driven by a 7.5–10 HP main motor and featuring powered blade and clamping systems.

General Specifications
Model: HEM V150A-SMART Automatic Mitering Vertical Band Saw
Type: Vertical band saw for metal cutting
Manufacturer: HEM
Cutting Capacity:
At 90°: 20" wide × 25" high
At 45°: 20" wide × 18" high
Blade Dimensions: 1.5" wide × 18.6' long × 0.050" thick
Main Motor Power: 7.5, complemented by a 5 HP hydraulic motor
Approximate Weight: 6,000 lbs

Operational Features
Power Head: Tilts both left and right for miter cuts
Blade Guide Arm: Powered for precision cutting
Blade Tensioning: Automatic, powered
Deburring Brush: Powered to keep the blade clean
Vertical Hold-down Clamp: Powered for secure material positioning
Automatic Feed System: Supports single or multi-stroke feed; manual jogging is also available
Top Nesting Clamp: Stabilizes workpieces during cutting

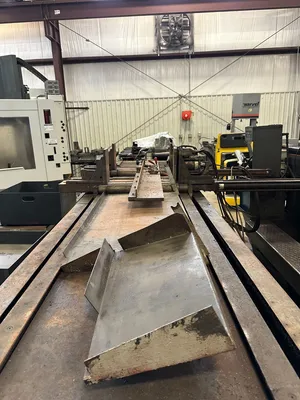

Material Handling: Includes powered infeed and outfeed conveyors
Chip Conveyor and Coolant System: Keeps the cutting area clear and controls heat
Work Light: Illuminates the cutting area for operator visibility

Control and Safety

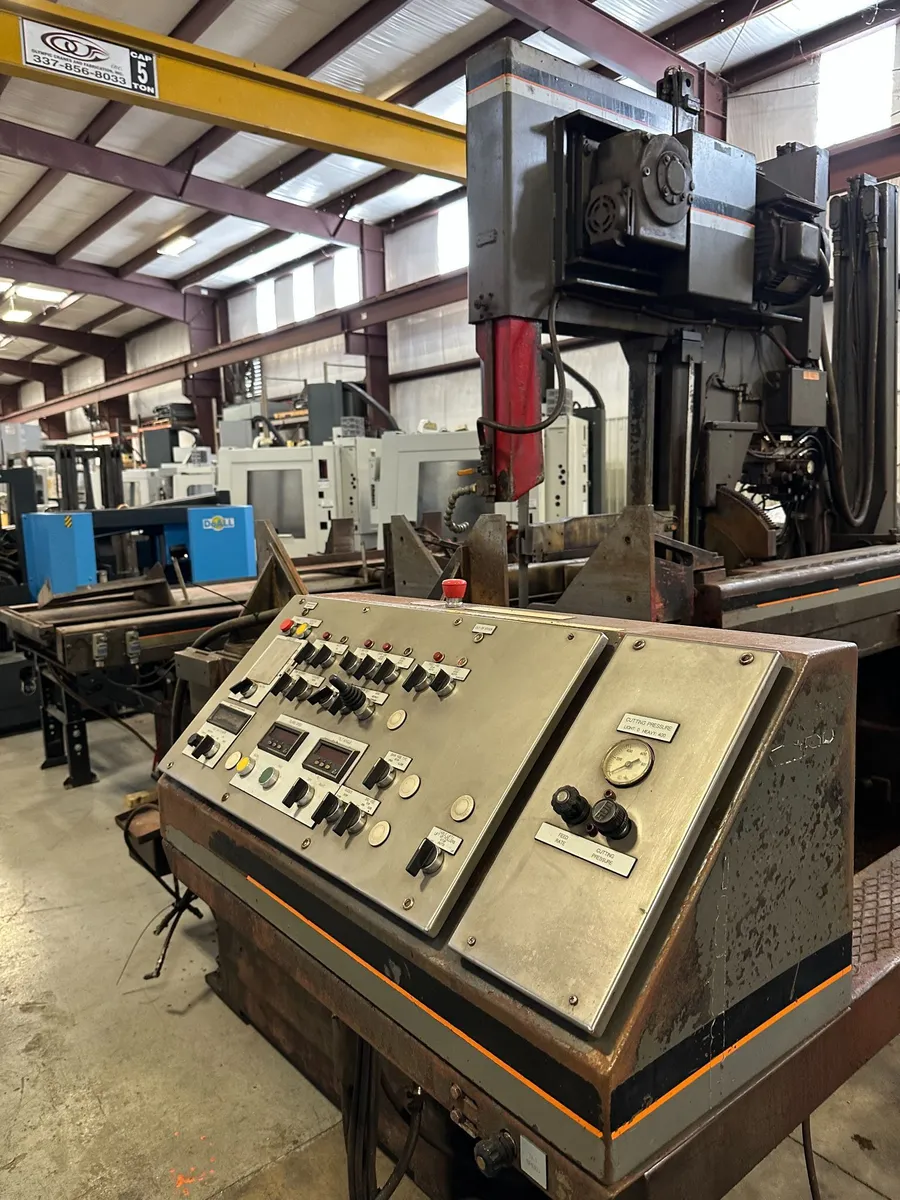

Control Panel: Features switches, dials, digital readouts, pressure gauges, and control knobs for varied functions
Safety Features: Blade guards and warning labels on blade housing
