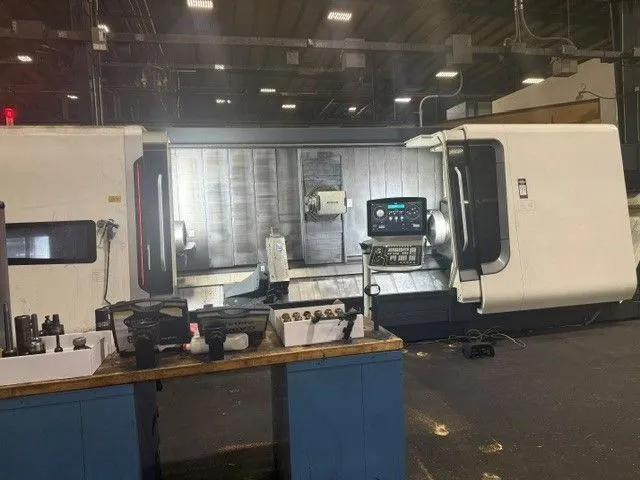

2020 DMG MORI CTX GAMMA 3000TC
Have one to sell?
ConditionUsed
1 available
DMG MORI CTX GAMMA 3000 TC, 2020 model, used 5-axis CNC lathe. Features swing of 27.6", power 69.7 HP, max RPM 2500, turning diameter 34.6". Includes tailstock for versatile machining solutions.
2020 DMG Model CTX Gamma 3000TC CNC Milling & Turning Center (SN: 008.7000.471) - Maximum Turning Diameter: 700mm /
27.6" - Maximum Turning Length: 3,000mm / 118" - Maximum Workpiece Size: 24.8" × 120" - Bar Capacity: 6.5" - X-Axis Travel:
79 31.5" - Y-Axis Travel: +/- 16.5" - Z-Axis Travel: 120" - Spindle Speeds: Up to 5,000 RPM - Spindle Horsepower: 60HP - C-Axis Resolution: 001° - B-Axis Spindle Speed: 12,000 RPM, 48HP - B-Axis Swivel: +/- 120° - X, Y, Z Rapid Rates: 1,968 IPM - Cutting Feed rates: .001-500 IPM - Heidenhain Celos Ergoline CNC Control
- (2) 20" 3-Jaw SMW Autoblock With 7" Hole - SMW Model SLU-
6.ZS Hydraulic Steady Rest - High-Pressure Coolant System With Paper Filtration - (3) Grundeos Pumps - Spindle Chiller - DMG Chip Conveyor With Mist Collector - Capto Tooling Taper - ATC: 80-Position - Serial #: 221050 / 125-460mm Capacity - Dimensions:
12' Front to Back; 33' Left to Right; 110" Height - Weight: 30,000
KG / 66,138 Lbs.
