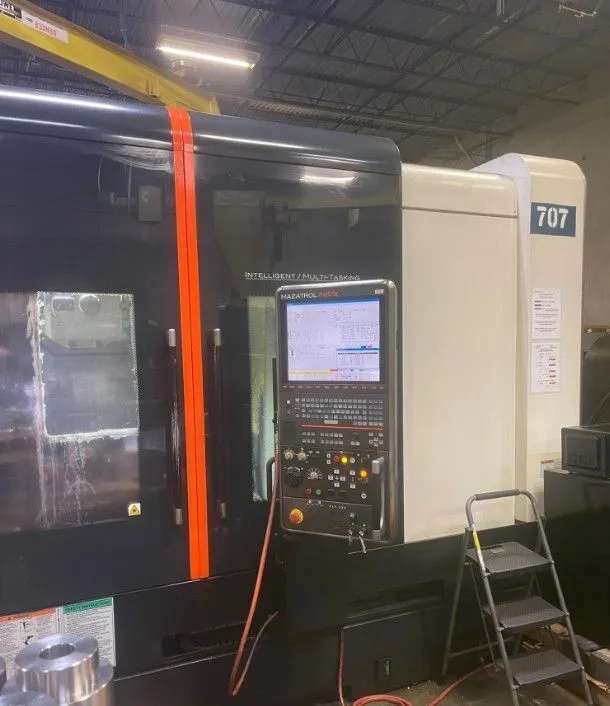

2011 MAZAK INTEGREX E-420HII

General Information
Manufacturer/Brand: Mazak (Japan)
Model: INTEGREX e-420HII
Year: 2011
Control System: Mazatrol Matrix CNC
Category: 5-axis multi-tasking lathe / turn-mill
Location of Reference Unit: Ohio, USA

1 Source
Machine Dimensions & Travels
pamtonschnell.com

X-axis travel: 845 mm
Y-axis travel: 420 mm
Z-axis travel: 1583 mm
Maximum rotating diameter: 670 mm
Maximum machining diameter: 670 mm
Maximum machining length: 1530 mm
Maximum bar machining capacity: 77 mm
Spindles & Speeds

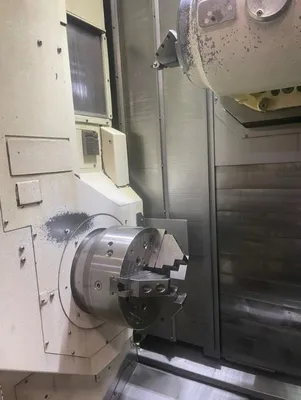

Main (turning/milling) spindle: Integral spindle/motor design to reduce vibration, ideal for heavy-duty cutting

Spindle speed: Up to 4000 rpm
Tailstock: Yes, with adjustable thrust (approx. 15 kN), quill stroke of 250 mm for long or short workpieces

Tooling System

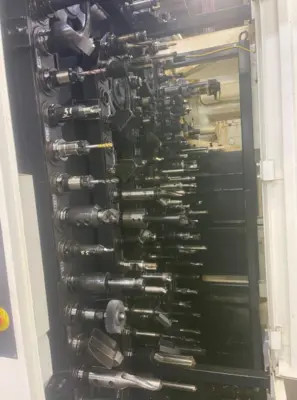

Automatic tool changer (ATC): Available; standard magazine 40 tools with options for 80/120 tools, handling longer tools for complex machining

Tool shank: Supports various rigid tool holders for deep drilling, boring, and 5-axis operations
Long boring/pipe bar system: Enables deep-hole and inner-diameter machining for large workpieces

Axis & Rotary Features
B-axis: High-rigidity roller gear cam, backlash minimized, minimum indexing increment: 0.0001°
C-axis: Large diameter worm wheel, supporting the full 360° rotation, positioning increment: 0.0001°
W-axis: Optional for secondary spindle operations, improving access to complex features

Power & Motors
mazarom.ro
Main spindle motor: 30–37 kW depending on the variant (40–50 HP)
Secondary spindle motor: 30 kW (40 HP) optional
Milling spindle motor: 30 kW (40 HP) optional
Features & Applications
High-rigidity construction with linear roller guides ensures precision in heavy-duty machining
Integral “Done-in-One” process capability allows complete machining from raw stock to finished part without repositioning

Optional steady rests (1–4 units depending on model) for long workpieces
Temperature-controlled spindle cooling for consistent precision during prolonged operations

Mazatrol Smooth X/Matrix CNC software features variable acceleration, smooth cornering, and machining optimization
