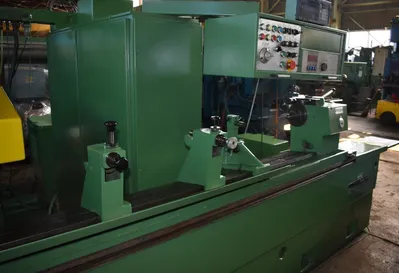

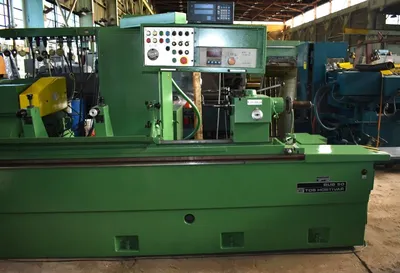

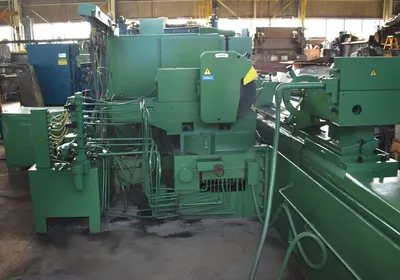

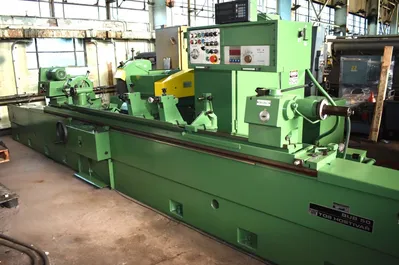

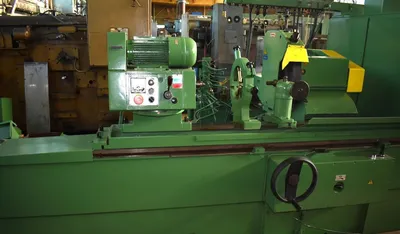

TOS HOSTIVAR BUB 50/3000

EQUIPPED WITH:

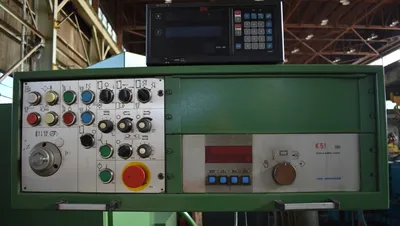

Sony 2-Axis Digital Readouts

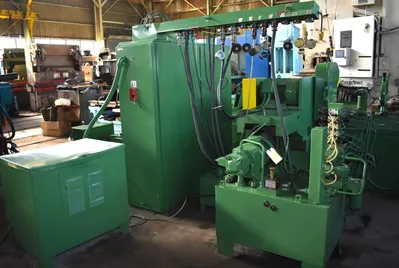

Hydraulic Longitudinal Table Feed

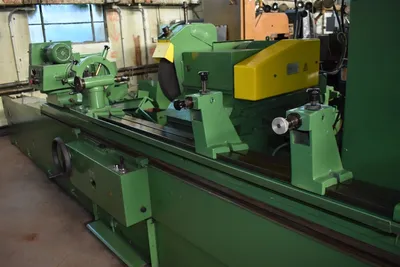

Steady Rest - (2) Follow Rests
Table-Mounted Grinding Wheel Dresser

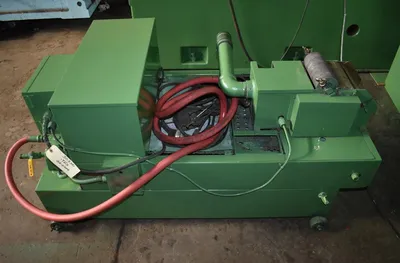

Coolant System

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 20"
Grinding Diameter, Maximum 20"
Distance Between Centers, Nominal 120"
Weight Capacity Between Centers 771 LBS
Grinding Wheel Diameter, Standard 20"
Grinding Wheel Width, Standard 3"
Grinding Wheel Width, Maximum 5"
Grinding Wheel Hole Diameter 8"
Table Longitudinal Travel, Maximum 126"
Table Longitudinal Speed, Infinitely Variable .0019 to .196 IPM
Table Rapid Traverse
Table Swivel Range -2/+ 4-DEGREES
Headstock Swivel Range 90-DEGREES
Grinding Wheelhead Swivel Range -15/+ 45-DEGREES
Grinding Wheelhead Speeds 1720 & 1980 RPM
Workhead Spindle Speeds, Infinite Range 18 to 560 RPM
Wokhead & Tailstock Spindle Taper 5 MT
Grinding Wheelhead Spindle Motor 13 HP
Floor Space Required, L x D 390" x 118"
Weight, Approximately 16750 LBS
