BODOR K2
Have one to sell?
ConditionNew
1 available
New

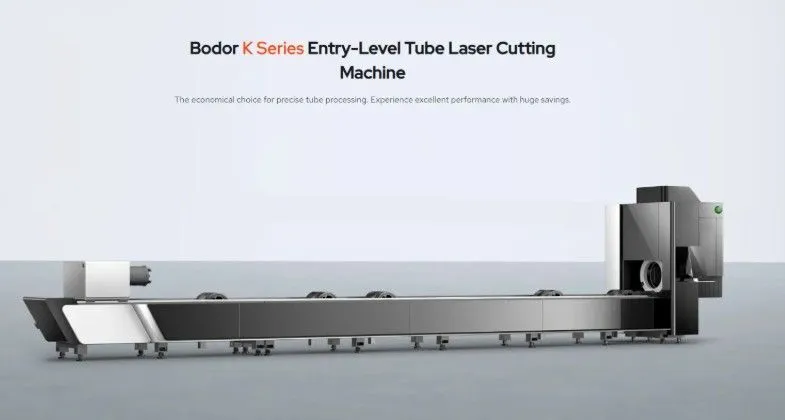

The Bodor K2 is an entry-level fiber laser tube-cutting machine designed for efficient, easy-to-operate metal tube cutting, with multiple power options and high precision.
Bodor K2 Tube Laser Cutting Machine Specifications
The Bodor K2 is an entry-level fiber laser tube cutting machine designed for efficient, easy-to-operate metal tube cutting with multiple power options and high precision.
Key Specifications
kempler.com
kempler.com

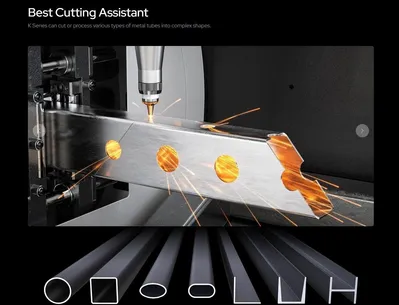

Tube Diameter Range: 8–230 mm (round, square, rectangular, oval)
Square Tube Side Length: 8–230 mm
Maximum Tube Length: 6477 mm / 9195 mm (6500 mm / 9200 mm in some listings)
Maximum Tube Weight: 300 kg
Laser Power Options: 1500 W, 3000 W, 6000 W
X-Axis Max Speed: 90 m/min
Y-Axis Max Speed: 60 m/min
X/Y Axis Positioning Accuracy: 0.05 mm/m
X/Y Axis Repositioning Accuracy: 0.03 mm
Max Chuck Rotation Speed: 90 rpm
Max Acceleration: 1 G
Effective Cutting Diameter: φ8–φ230 mm (square/rectangular equivalent)
Performance & Features
kempler.com
kempler.com
Fast Clamping: Pneumatic chucks with 2‑second clamping response for quick setup.
High-Speed Cutting: Enhanced by high-performance busbar servo motors and optimized edge searching for precision.
Material Utilization: Shortest possible tailstock (≈45 mm) to minimize waste.
Special Jaws: For specific clamping positions to improve safety and accuracy.
Automatic Loading/Unloading: K-Trans and K-Loader options for cyclic loading of round, square, rectangular, oval tubes, channel steel, and I-beams.
Bodor Lightning: Lightning-quick piercing process integrated with BodorGenius for faster cutting.
Expert High Speed Cutting Database: Improves air cutting efficiency by up to 37% for carbon steel.
BodorThinker Software: For machine control and monitoring.
Warranty: 5 years on new units.
The Bodor K2 is an entry-level fiber laser tube-cutting machine designed for efficient, easy-to-operate metal tube cutting, with multiple power options and high precision.
Imperial
| Length | 30.67' |
| Width | 6.14' |
| Height | 7.5' |
| Max. positioning speed parallel axis x, y | 3543.31 in |
| Bilateral repeatability of positioning of one axis R (ISO 230-2:2014) | 0.00118 in |
| Averaged, bilateral position deviation of one axis M (ISO 230-2:2014) | 0.002" |
| Max. workpiece weight | 661.39 lb |
| Machine weight | 5401.32 lb |
| Power | 3000 w |
| Total electrical consumption of system | 19.89 kw |
| Control | CNC |
| Dimensions | 30.67 × 6.14 × 7.50 |
| Weight | 5401.32 |
Bodor K2 Tube Laser Cutting Machine Specifications
The Bodor K2 is an entry-level fiber laser tube cutting machine designed for efficient, easy-to-operate metal tube cutting with multiple power options and high precision.
Key Specifications
kempler.com
kempler.com
Tube Diameter Range: 8–230 mm (round, square, rectangular, oval)
Square Tube Side Length: 8–230 mm
Maximum Tube Length: 6477 mm / 9195 mm (6500 mm / 9200 mm in some listings)
Maximum Tube Weight: 300 kg
Laser Power Options: 1500 W, 3000 W, 6000 W
X-Axis Max Speed: 90 m/min
Y-Axis Max Speed: 60 m/min
X/Y Axis Positioning Accuracy: 0.05 mm/m
X/Y Axis Repositioning Accuracy: 0.03 mm
Max Chuck Rotation Speed: 90 rpm
Max Acceleration: 1 G
Effective Cutting Diameter: φ8–φ230 mm (square/rectangular equivalent)
Performance & Features
kempler.com
kempler.com
Fast Clamping: Pneumatic chucks with 2‑second clamping response for quick setup.
High-Speed Cutting: Enhanced by high-performance busbar servo motors and optimized edge searching for precision.
Material Utilization: Shortest possible tailstock (≈45 mm) to minimize waste.
Special Jaws: For specific clamping positions to improve safety and accuracy.
Automatic Loading/Unloading: K-Trans and K-Loader options for cyclic loading of round, square, rectangular, oval tubes, channel steel, and I-beams.
Bodor Lightning: Lightning-quick piercing process integrated with BodorGenius for faster cutting.
Expert High Speed Cutting Database: Improves air cutting efficiency by up to 37% for carbon steel.
BodorThinker Software: For machine control and monitoring.
Warranty: 5 years on new units.
