KAAST MACHINE TOOLS HPB CNC 37220
Have one to sell?
ConditionNew
1 available
New
HPB 37220 3-Axis CNC Press Brake, 12’ x 242 tons. The HPB Hydraulic Press Brake is perfect for complex, sensitive, single or multiple bends at high speed. This machine is among the highest-rated CNC press brakes, helping increase productivity and lower costs by utilizing a user-friendly Cybelec computer numerical controller and HOERBIEGER hydraulics. Combining speed and power results in high-quality, repeatable bending through synchronized cylinders and valves. Featuring automatic use of all axes on startup, these machines are designed using SOLID WORKS 3D programming and built with enhanced ST44-1 quality steel using the latest technology. The rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm (0.0004”). CNC-controlled servo drives and high-precision ball screws provide precise results for long, deep bends. The long-lasting, rigid body is also suitable for heavy-duty applications and is easy to maintain. The included 2-axis ultra-strong backgauge system (X=800 mm (31”) and R), with ± 0.01 mm (0.0004”) repeatability, moves along rails and a ball screw, with the bending length CNC-controlled and foldable backgauge fingers for reverse-bending applications. The chrome-coated cylinders are machined with 0.001 mm (0.00004”) precision, and the pistons are specially hardened. Quick-release clamping system, Promecam-type top clamps, can be easily loaded and unloaded. Lower clamps are also user-friendly and machined with high precision. Front support arms slide along the machine length and are easy to adjust. Two photocells are on the sides for rear guarding. Optical linear scales are sensitive up to ± 0.01 mm (0.0004”). Multi-functional, highly programmable Delem DA-58T touchscreen controller. SIEMENS electrical system. Side guarding is standard and meets CE regulations. 2-year parts and service. Made In Taiwan
Specifications
Bending Length: 3760 mm (148”)
Bending Power: 220 tons (242 US tons)
Between Columns: 3250 mm (128”)
Ram Rapid Speed: 180 mm/sec (7”/sec.)
Ram Working Speed: 11 mm/sec (0.4”/sec.)
Ram Return Speed: 160 mm/sec (6.3”/sec.)
Travel in Backgauge Axis: 800 mm (31”)
Speed of Backgauge Axis: 500 mm/m (19.7”/m)
Backgauge Finger Blocks: 2
Sheet Support Arms: 2
Oil Capacity: 300 liters (79 Gal)
Motor Power: 18.5 kW (25 Hp)
Stroke: 275 mm (10.8”)
Daylight: 550 mm (21.6”)
Throat Depth: 410 mm (16”)
Table Height/Width: 900 mm (35”) / 160 mm (6.3”)
Dimensions (L × W × H): 5100 × 2900 × 2250 mm (200 × 114 × 88”)
Weight: 12600 kg (27,780 lbs)
Standard configuration with adjustable and sliding front support arms. Top and bottom tools are surface-hardened by special treatment. Promecam quick-clamping system. Delem DA-53T CNC-controlled, strong 800 mm back gauge. 410 mm (16") throat depth. 2-piece back gauge fingers. Scales in metric and inches. Foot pedal is produced according to CE standards and is suitable for single and multiple bendings. 2 photocells are placed facing each other for rear and side guards. Covers for cylinders and top beam.
| oHPB AKAS |

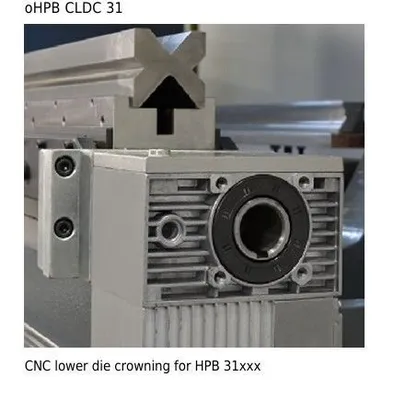

| oHPB CLDC 37 |
| oHPB Delem 58T |
| oHPB R-axis 37 |
HPB 37220 3-Axis CNC Press Brake, 12’ x 242 tons. The HPB Hydraulic Press Brake is perfect for complex, sensitive, single or multiple bends at high speed. This machine is among the highest-rated CNC press brakes, helping increase productivity and lower costs by utilizing a user-friendly Cybelec computer numerical controller and HOERBIEGER hydraulics. Combining speed and power results in high-quality, repeatable bending through synchronized cylinders and valves. Featuring automatic use of all axes on startup, these machines are designed using SOLID WORKS 3D programming and built with enhanced ST44-1 quality steel using the latest technology. The rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm (0.0004”). CNC-controlled servo drives and high-precision ball screws provide precise results for long, deep bends. The long-lasting, rigid body is also suitable for heavy-duty applications and is easy to maintain. The included 2-axis ultra-strong backgauge system (X=800 mm (31”) and R), with ± 0.01 mm (0.0004”) repeatability, moves along rails and a ball screw, with the bending length CNC-controlled and foldable backgauge fingers for reverse-bending applications. The chrome-coated cylinders are machined with 0.001 mm (0.00004”) precision, and the pistons are specially hardened. Quick-release clamping system, Promecam-type top clamps, can be easily loaded and unloaded. Lower clamps are also user-friendly and machined with high precision. Front support arms slide along the machine length and are easy to adjust. Two photocells are on the sides for rear guarding. Optical linear scales are sensitive up to ± 0.01 mm (0.0004”). Multi-functional, highly programmable Delem DA-58T touchscreen controller. SIEMENS electrical system. Side guarding is standard and meets CE regulations. 2-year parts and service. Made In Taiwan
Imperial
| Tonnage | 220 T |
| Type | HYD |
| Overall Length | 16.73' |
| Between Housings | 12' |
| Stroke | 10.83" |
| Control | CNC |
| Dimensions | 5100 × 2900 × 2250 mm |
| Weight | 12600 kg |
Specifications
Bending Length: 3760 mm (148”)
Bending Power: 220 tons (242 US tons)
Between Columns: 3250 mm (128”)
Ram Rapid Speed: 180 mm/sec (7”/sec.)
Ram Working Speed: 11 mm/sec (0.4”/sec.)
Ram Return Speed: 160 mm/sec (6.3”/sec.)
Travel in Backgauge Axis: 800 mm (31”)
Speed of Backgauge Axis: 500 mm/m (19.7”/m)
Backgauge Finger Blocks: 2
Sheet Support Arms: 2
Oil Capacity: 300 liters (79 Gal)
Motor Power: 18.5 kW (25 Hp)
Stroke: 275 mm (10.8”)
Daylight: 550 mm (21.6”)
Throat Depth: 410 mm (16”)
Table Height/Width: 900 mm (35”) / 160 mm (6.3”)
Dimensions (L × W × H): 5100 × 2900 × 2250 mm (200 × 114 × 88”)
Weight: 12600 kg (27,780 lbs)
Standard configuration with adjustable and sliding front support arms. Top and bottom tools are surface-hardened by special treatment. Promecam quick-clamping system. Delem DA-53T CNC-controlled, strong 800 mm back gauge. 410 mm (16") throat depth. 2-piece back gauge fingers. Scales in metric and inches. Foot pedal is produced according to CE standards and is suitable for single and multiple bendings. 2 photocells are placed facing each other for rear and side guards. Covers for cylinders and top beam.
| oHPB AKAS |
| oHPB CLDC 37 |
| oHPB Delem 58T |
| oHPB R-axis 37 |
