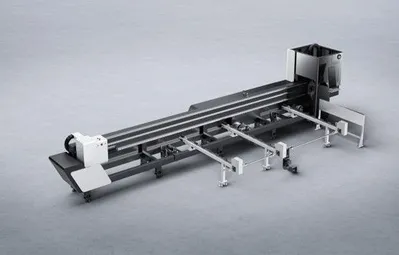

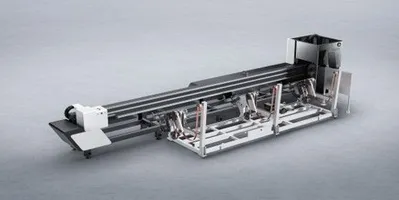

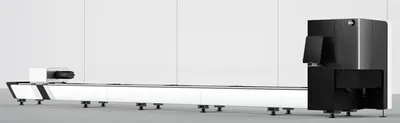

BODOR K3 30FT 6KW TUBE LASER
Have one to sell?
ConditionNew
1 available
New
BODOR K3 Laser Cutter, new condition, with 1000W power. Offering precise cutting capabilities with a large working area. Elevate your precision tasks with this professional-grade equipment.
****Lead time for K3 6 kW: 30 Days*****
Tube cross-sectional shapes: Round, square, rectangular, oval, rounded rectangular, angle steel, channel steel, and other tubes
Tube size range
Round tube: Φ0.98-Φ14.01 in
Square tube: Φ0.98-Φ14.01 in
Rectangular tube:
14.01 in ≥ side length ≥ 0.98 in
Maximum machinable tube length: 30 ft
K3 Laser Power Price
"K3 30ft tube laser
BodorThinker Control system. BodorPower Laser source. BodorGenius Laser head." 12kw
K-Loader 1 Set Included
Dust Collector 1 Set Included
Air compressor 1 Set Included
One year onsite service 1 Set Included
Freight&Tariff Included
Installation & Training Cost Included
Payment Terms "30% down payment required to initiate production.
60% before shipping.
10% due within 7 days after installation and training is completed.
Warranty: 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
BODOR K3 Laser Cutter, new condition, with 1000W power. Offering precise cutting capabilities with a large working area. Elevate your precision tasks with this professional-grade equipment.
****Lead time for K3 6 kW: 30 Days*****
Tube cross-sectional shapes: Round, square, rectangular, oval, rounded rectangular, angle steel, channel steel, and other tubes
Tube size range
Round tube: Φ0.98-Φ14.01 in
Square tube: Φ0.98-Φ14.01 in
Rectangular tube:
14.01 in ≥ side length ≥ 0.98 in
Maximum machinable tube length: 30 ft
Imperial
| Length | 50.98' |
| Width | 7.66' |
| Height | 9.35' |
| Cutting area X | 6 m |
| Cutting area Y | 0.4 m |
| Cutting area Z | 0.4 m |
| Max. simultaneous positioning speed | 2,362.2" |
| Bilateral repeatability of positioning of one axis R (ISO 230-2:2014) | 0.001181 in |
| Averaged, bilateral position deviation of one axis M (ISO 230-2:2014) | 0.002" |
| Max. workpiece weight | 1102.31 lb |
| Machine weight | 15432.4 lb |
| Power | 1000 w |
| Control | CNC |
| Dimensions | 50.984 x 7.661 x 9.350 ft |
| Weight | 15432.36 lb |
K3 Laser Power Price
"K3 30ft tube laser
BodorThinker Control system. BodorPower Laser source. BodorGenius Laser head." 12kw
K-Loader 1 Set Included
Dust Collector 1 Set Included
Air compressor 1 Set Included
One year onsite service 1 Set Included
Freight&Tariff Included
Installation & Training Cost Included
Payment Terms "30% down payment required to initiate production.
60% before shipping.
10% due within 7 days after installation and training is completed.
Warranty: 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
