SMEC MCV 5500 (12K) DIRECT TSC
Have one to sell?
ConditionNew
1 available
New

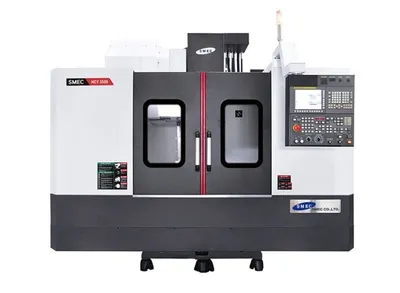

New SMEC MCV 5500 vertical machining center, ready to support precision manufacturing needs. Contact us for details.
Travel X/Y/Z 41.33" x 21.65" x 20.47" Rapid traverse(X/Y/Z) 1,417/1,417/1,181 inch/min
Distance from table top to spindle nose 5.12" - 25.59" Tool shank CAT40
Working surface (table size) 21.26” x 47.24” Tool change time (T- T) 1.3
Loading capacity 1763 lbs Magazine capacity 30
Distance from column to spindle center 23.9" Required floor space 143.2 x 141.4 x 109.4
Spindle speed 12000 rpm Machine weight 14771 lbs
Spindle motor (continuous/max) 15/30 hp Controller Fanuc 0i-MF+
Max. spindle torque 104.3 lb-ft
