SSF CNC SOLUTIONS M-6x4200
Have one to sell?
ConditionNew
1 available
New

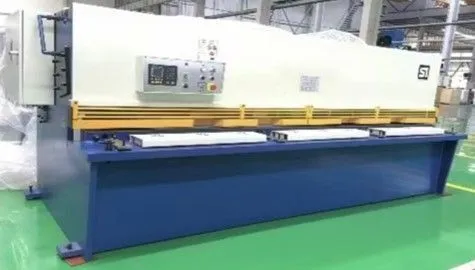

New SSF CNC Solutions M-6×4200 power squaring shear, designed for precise sheet metal cutting. A compelling addition to your fabrication shop. CNC control system; servo-driven backgauge with ball screw and linear guides; hydraulic sheet hold-downs; adjustable blade clearance; welded, stress-relieved steel frame and sheet-feed rollers. Selected components include Siemens contactors, Schneider protection devices, and NOK seals.
Cutting length: 4,200 mm (165.4 in)
Cutting capacity: 6 mm (0.236 in) at 450 MPa tensile strength
Cutting angle: 1.5°
Strokes per minute: ≥ 13
Backgauge travel: 10–750 mm (0.4–29.5 in)
Backgauge drive: Servo-driven, 0.75 kW (1 HP)
Main motor: 7.5 kW (10 HP)
Blade clearance: Adjustable; blade-gap uniformity: 0.02 mm
Machine weight: Approx. 7,000 kg (15,432 lb)
New SSF CNC Solutions M-6×4200 power squaring shear, designed for precise sheet metal cutting. A compelling addition to your fabrication shop. CNC control system; servo-driven backgauge with ball screw and linear guides; hydraulic sheet hold-downs; adjustable blade clearance; welded, stress-relieved steel frame and sheet-feed rollers. Selected components include Siemens contactors, Schneider protection devices, and NOK seals.
Cutting length: 4,200 mm (165.4 in)
Cutting capacity: 6 mm (0.236 in) at 450 MPa tensile strength
Cutting angle: 1.5°
Strokes per minute: ≥ 13
Backgauge travel: 10–750 mm (0.4–29.5 in)
Backgauge drive: Servo-driven, 0.75 kW (1 HP)
Main motor: 7.5 kW (10 HP)
Blade clearance: Adjustable; blade-gap uniformity: 0.02 mm
Machine weight: Approx. 7,000 kg (15,432 lb)
