SSF CNC SOLUTIONS XDP-1300RR
Have one to sell?
ConditionNew
1 available
New

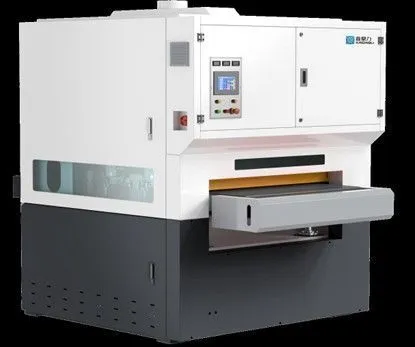

New SSF CNC Solutions XDP-1300RR belt grinder and sander. A professional addition to your shop, available in new condition. A wide-format, two-station abrasive-belt system designed for deburring, oxide and slag removal, surface grinding, and linear grain finishing of steel, stainless steel, aluminum, copper, and other metal workpieces. Two abrasive-belt stations enable flexible coarse-to-fine processing in a single pass, depending on abrasive selection and application.
XDP-1300RR SPECIFICATIONS
PARAMETER | SPECIFICATION
Working width | 1,300 mm / 51.2 in
Workpiece thickness | 0.5–80 mm / 0.02–3.15 in
Conveyor feed speed | 1–7 m/min, variable-frequency controlled
Abrasive belts | 2 stations • 1,320 × 2,200 mm per belt
Abrasive-belt drive motors | 2 × 18.5 kW
Main machine rated / max power | 39.5 kW (excludes dust collector)
Main machine dimensions | 2,500 × 2,100 × 2,200 mm
Main machine weight | Approx. 2,800 kg
Required compressed air | 0.6–0.8 MPa
SYSTEM / COMPONENT | SPECIFIED BRAND / DESIGN
PLC and operator touchscreen | Siemens
Low-voltage electrical components | Schneider Electric / Omron
Main shaft bearings | NSK
Abrasive-belt tracking photoelectric sensors | Banner Engineering (USA)
Conveyor speed control inverter | Shihlin
Pneumatic solenoid valves | AirTAC
Platform lifting motor | 1 kW servo motor (per component list)
Workpiece transport | Heat-resistant conveyor; 300 mm magnetic section
• XDP-1300RR main machine with dual wide-belt grinding stations
• 5.5 kW wet-type dust collection system (for dust extraction, not wet grinding)
• Siemens PLC and touchscreen control system
• Factory-specified standard accessories and documentation
New SSF CNC Solutions XDP-1300RR belt grinder and sander. A professional addition to your shop, available in new condition. A wide-format, two-station abrasive-belt system designed for deburring, oxide and slag removal, surface grinding, and linear grain finishing of steel, stainless steel, aluminum, copper, and other metal workpieces. Two abrasive-belt stations enable flexible coarse-to-fine processing in a single pass, depending on abrasive selection and application.
XDP-1300RR SPECIFICATIONS
PARAMETER | SPECIFICATION
Working width | 1,300 mm / 51.2 in
Workpiece thickness | 0.5–80 mm / 0.02–3.15 in
Conveyor feed speed | 1–7 m/min, variable-frequency controlled
Abrasive belts | 2 stations • 1,320 × 2,200 mm per belt
Abrasive-belt drive motors | 2 × 18.5 kW
Main machine rated / max power | 39.5 kW (excludes dust collector)
Main machine dimensions | 2,500 × 2,100 × 2,200 mm
Main machine weight | Approx. 2,800 kg
Required compressed air | 0.6–0.8 MPa
SYSTEM / COMPONENT | SPECIFIED BRAND / DESIGN
PLC and operator touchscreen | Siemens
Low-voltage electrical components | Schneider Electric / Omron
Main shaft bearings | NSK
Abrasive-belt tracking photoelectric sensors | Banner Engineering (USA)
Conveyor speed control inverter | Shihlin
Pneumatic solenoid valves | AirTAC
Platform lifting motor | 1 kW servo motor (per component list)
Workpiece transport | Heat-resistant conveyor; 300 mm magnetic section
• XDP-1300RR main machine with dual wide-belt grinding stations
• 5.5 kW wet-type dust collection system (for dust extraction, not wet grinding)
• Siemens PLC and touchscreen control system
• Factory-specified standard accessories and documentation
